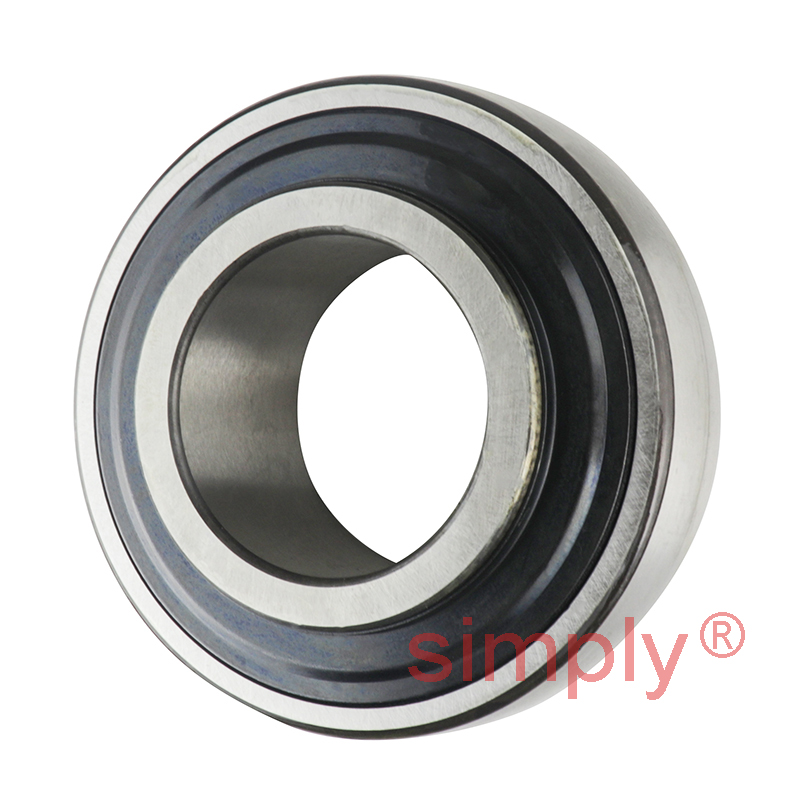

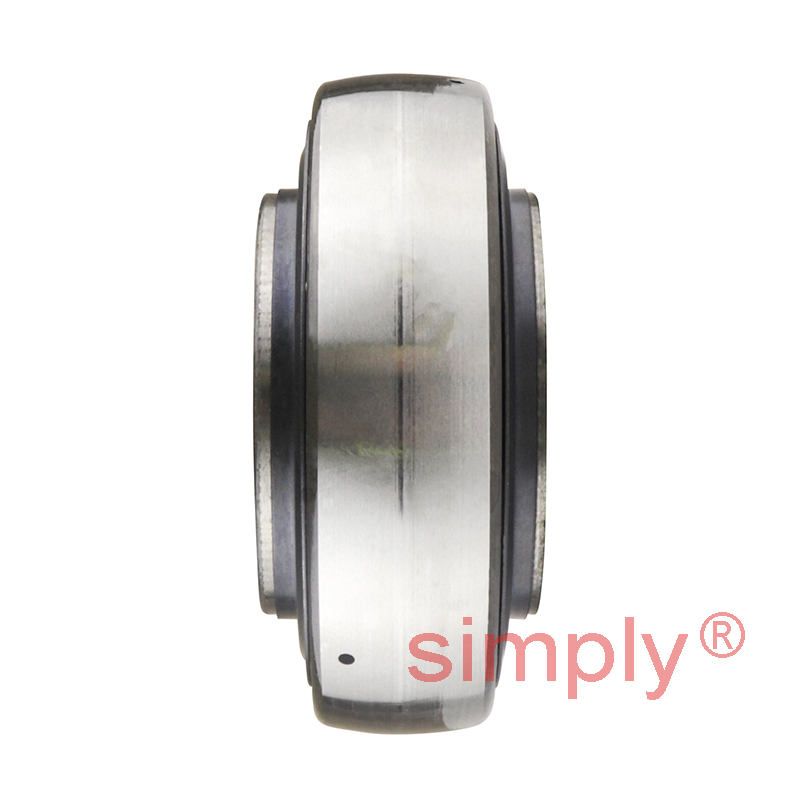

SKF YSA207-2FK Tapered Bore Bearing Insert 30 mm Bore (without Adaptor Sleeve) 72mm Outside Diameter

Page Feedback?

SKU: YSA207-2FK-SKF

£30.86 ex VAT

Price Breaks

Quantity	Prices
10+	£27.46 each
20+	£25.92 each
30+	£25.61 each
40+	£25.30 each
50+	£24.99 each
75+	£24.69 each
100+	£23.14 each
200+	£22.83 each
250+	£22.53 each
500+	£22.22 each
1000+	£21.60 each

10+ £27.46 each
20+ £25.92 each
30+ £25.61 eachClick Here…

In Stock

Add to a Save List

SKF YSA-2-2FK Y-bearings with a Tapered Bore: These bearings have a symmetrically extended inner ring on both sides and a tapered bore (taper 1:12) enabling them to be mounted on a standard adapter sleeve in the H-23 series. These bearings are equipped with the rugged standard integral seal, fitted with additional plain sheet steel flingers. The outer ring has two lubrication holes as standard. Mounting onto an adapter sleeve enables the bearings to opeate at higher speeds and run more smoothly in applications where the direction of rotation is constant or alternating.
Note: The appropriate adapter sleeve is not part of the bearing and must be ordered separately.
Benefits: Lubrication holes allow easy re-lubrication

Brand / Quality: SKF - High Quality
Inside Diameter: 30mm
Outside Diameter: 72mm
Style: YSA
Grease Guns?

Click Here

Grease?

Click Here

d	=	30mm
D	=	72mm
B	=	30.5mm
B1	=	43mm
C	=	19mm
s1	=	24.3mm
Static load Cr	=	15.3 kN
Dynamic load Cor	=	25.5 kN
Fatigue load limit Pu	=	0.655 kN
Limiting speed	=	5300 rpm
Weight	=	0.47 kg
Required Sleeve	=	H2307
