SKF YHC209-108-2LS8W/VT357 Hexagonal Bore Bearing Insert 1-1/2 Inch Bore Simply Bearings Ltd

SKF YHC Y-bearings with a Hexagonal or Square Bore: These bearings are intended primarily for high torque applications. The bore is produced to a plus tolerance and enables easy mounting and dismounting. These bearings should be axially located on the shaft using adjacent components. The bearings have a standard outer ring without lubrication holes. They are equipped with rugged contact seals.
Benefits: Easy mounting and dismounting, suitable for high torque applications

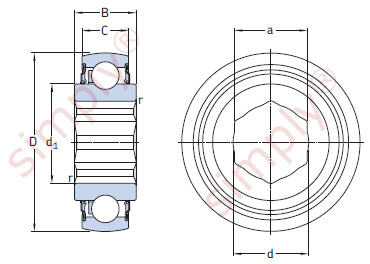

a	=	1-1/2 inch
d	=	39mm
D	=	85mm
B	=	30mm
C	=	22mm
d1	=	56.8mm
r	=	0.4mm
Static Load Cr	=	21.6 kN
Dynamic Load Cor	=	33.2 kN
Fatigue load limit Pu	=	0.915 kN
Limiting speed	=	500 rpm
Weight	=	0.58 kg
