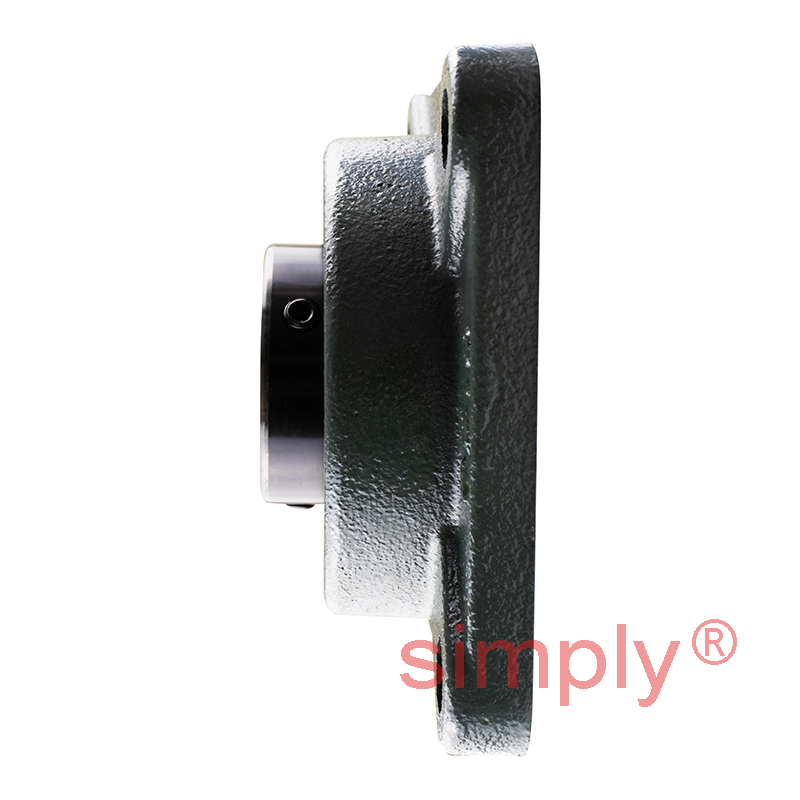

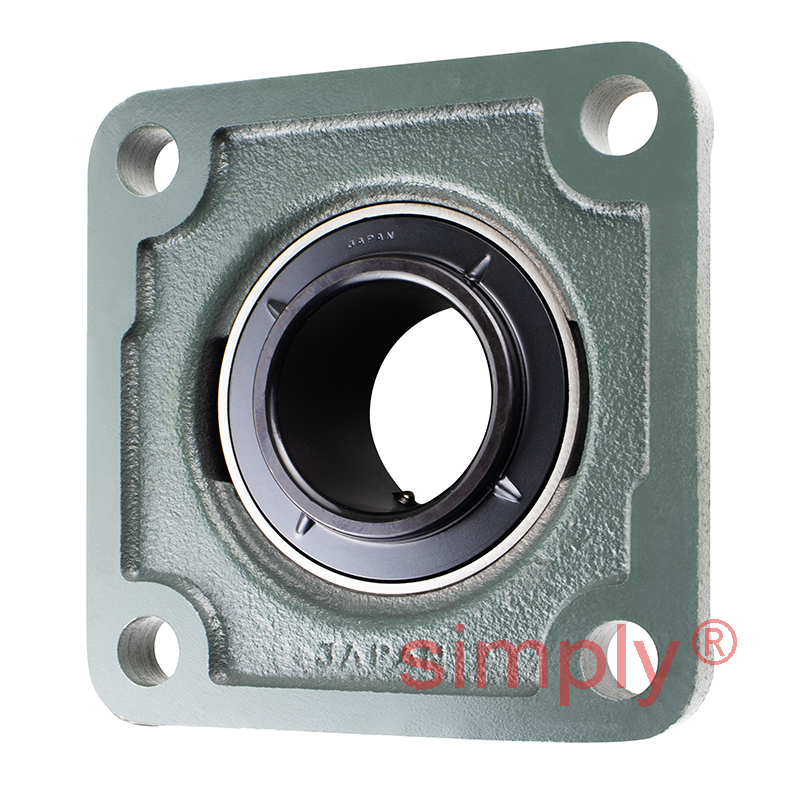

NTN M-UCF210D1 Metric Four Bolt Square Cast Iron Flange Housing with 50mm Bore Insert
£43.68
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £38.88 each |
| 4+ | £36.69 each |
| 9+ | £36.25 each |
| 19+ | £35.82 each |
| 49+ | £35.38 each |
| 99+ | £34.94 each |
| 499+ | £32.76 each |
In Stock
| Dimensions | ||
| Shaft diameter | = | 50mm |
| L | = | 143mm |
| J | = | 111mm |
| A2 | = | 22mm |
| A1 | = | 16mm |
| A | = | 40mm |
| N | = | 16mm |
| A0 | = | 54.6mm |
| B | = | 51.6mm |
| S | = | 19mm |
| Fixing bolt | = | M14 |
| Load rating | ||
| Dynamic load Cr | = | 39 kN |
| Static load C0r | = | 23.2 kN |
| Fatigue load limit Cu | = | 1.82 kN |
| Unit information | ||
| Mass | = | 2.5 kg |
