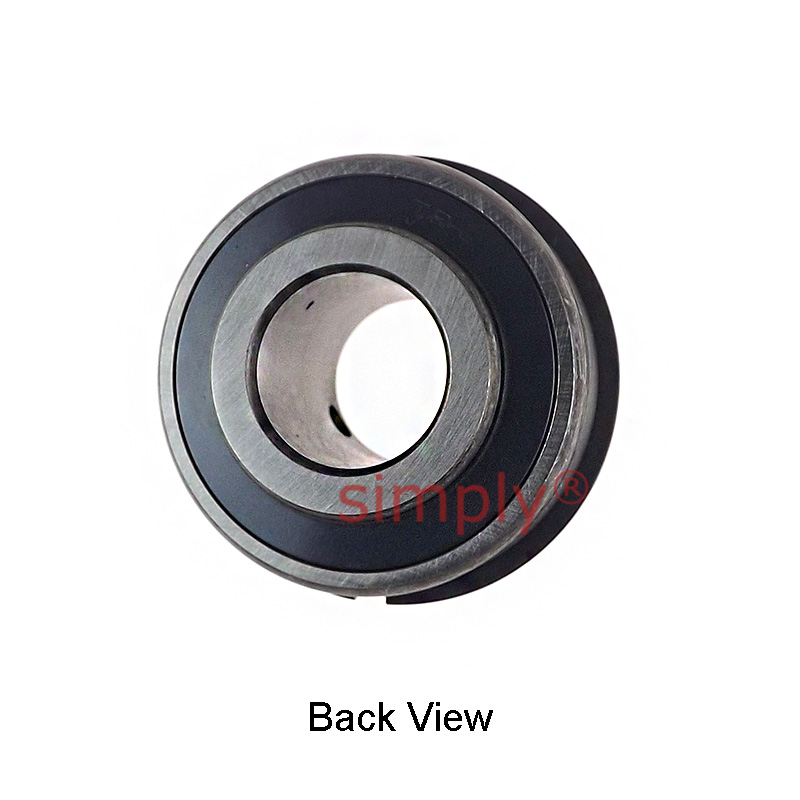

SER205-14 Imperial Bearing Insert and Snap Ring 7/8 inch Bore 52mm Outside Dia
£25.70
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £22.88 each |
| 4+ | £21.59 each |
| 9+ | £21.33 each |
| 19+ | £21.08 each |
| 49+ | £20.82 each |
| 99+ | £20.56 each |
| 499+ | £19.28 each |
| 999+ | £19.02 each |
| 1999+ | £18.76 each |
| 2999+ | £18.51 each |
| 4999+ | £17.99 each |
In Stock
| d | = | 7/8 inch |
| D | = | 52mm |
| Bi | = | 34.9mm |
| Be | = | 19.1mm |
| n | = | 13.1mm |
| m | = | 21.8mm |
| E | = | 15.29mm |
| a | = | 1.07mm |
| h | = | 5.2mm |
| R | = | 5.74mm |
| J | = | 2.46mm |
| P | = | 57.9mm |
| G | = | 5.6mm |
| Grub screw | = | 1/4"-28UNF |
| Weight | = | 0.27 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
