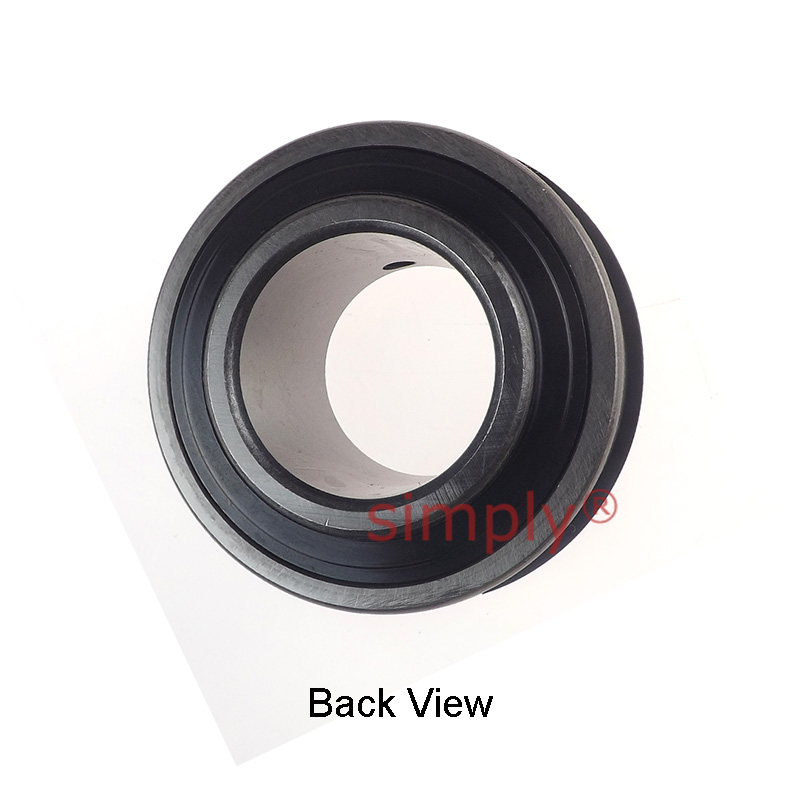

SER209-28 Imperial Bearing Insert and Snap Ring 1-3/4 inch Bore 85mm Outside Dia
£24.68
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £21.97 each |
| 4+ | £20.73 each |
| 9+ | £20.49 each |
| 19+ | £20.24 each |
| 49+ | £19.99 each |
| 99+ | £19.75 each |
| 499+ | £18.51 each |
| 999+ | £18.27 each |
| 1999+ | £18.02 each |
| 2999+ | £17.77 each |
| 4999+ | £17.28 each |
In Stock
| d | = | 1-3/4 inch |
| D | = | 85mm |
| Bi | = | 49.2mm |
| Be | = | 27.8mm |
| n | = | 19mm |
| m | = | 30.2mm |
| E | = | 22.62mm |
| a | = | 1.65mm |
| h | = | 6.4mm |
| R | = | 8.72mm |
| J | = | 3.28mm |
| P | = | 91.6mm |
| G | = | 8mm |
| Grub screw | = | 5/16"x24UNF |
| Weight | = | 0.90 kg |
| Dynamic load | = | 2560 kgf |
| Static load | = | 1810 kgf |
| Rec max speed | = | 3700 rpm |
