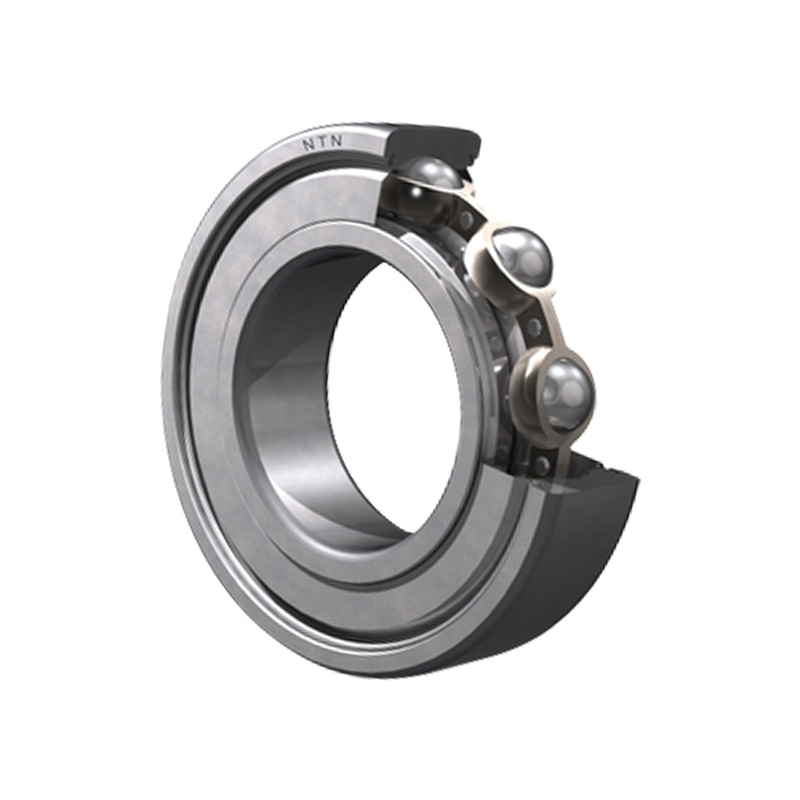

NTN 6322ZZ/2AS Metal Shielded Type Deep Groove Ball Bearing 110x240x50mm
- World-renowned NTN quality
- Premium Japanese Manufacturer
- Highest Quality Assured
- Cost effective solution
Equivalent to: 6322ZZCM 6322ZZ 6322ZZ 63222Z 6322ZZ 63222ZR 6322ZZE 6322FF 6322DD 6322DDC 6322KDDC EL1102Z EL110ZZ 9122KDD 9122FF 122KSFF 773L22 6122PP
£371.85
ex VAT
Price Breaks
| Quantity | Prices |
|---|---|
| 3+ | £330.95 each |
| 5+ | £312.36 each |
| 10+ | £308.64 each |
| 25+ | £304.92 each |
| 49+ | £301.20 each |
| 74+ | £297.48 each |
| 99+ | £278.89 each |
| 199+ | £275.17 each |
| 249+ | £271.45 each |
| 499+ | £267.73 each |
| 999+ | £260.30 each |
In Stock
| Bearing dimensions | ||
| d | = | 110mm |
| D | = | 240mm |
| B | = | 50mm |
| rs min | = | 3mm |
| Loads angles and speeds | ||
| Cr | = | 227 kN |
| Cor | = | 179 kN |
| Cu | = | 10.5 kN |
| f0 | = | 13.1 kN |
| Grease | = | 2900 rpm |
| Oil | = | 3400 rpm |
| Fitting Dimensions | ||
| da Min. | = | 123mm |
| da Max. | = | 149mm |
| Da Max. | = | 227mm |
| ras Max. | = | 2.5mm |
| Weight | = | 9.54 kg |
